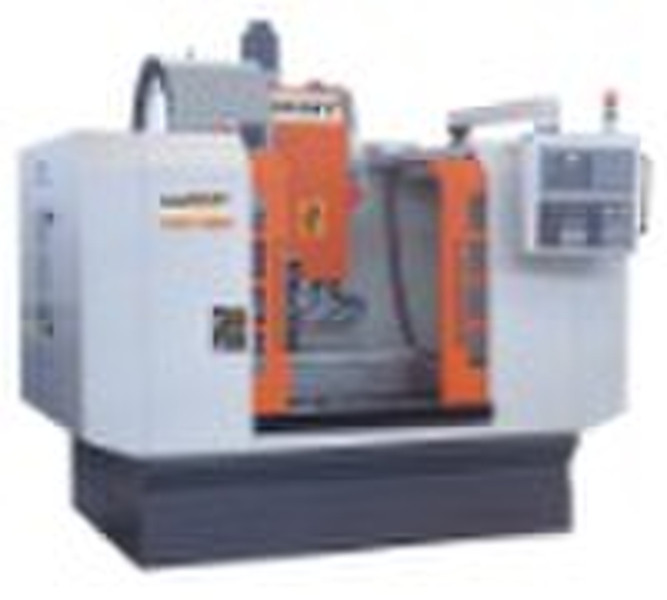

Vertical Machine Center VMC850

Hardened and quenched slideway with Turcite B coatedmakes the machine good anti-vibration performance,high rigidity and heavy loaded. Spindle and spindle motor have been dynamic balanced,so tool life could be extended,and fantastic processing quality could be reached. The design of whole cover is designing with good oil and water proof performance. Taiwan famouse brand components(C3 leading screw,spindle and tool magazine). Renishaw equipments are used to test each machine to meet the requirements of all clients. Two dimensional and three dimensional trial cutting test of rigidity of tool magazine,to assure its high cutting quality.Table size 950*460mm Travel X*Y*Z 800*480*500mm Distance between Spindle and Table 105-655mm Distance between Spindle and Column 550mm Spindle Rotation Speed 8000RPM Spindle Taper BT40 Spindle Motor 5.5KW X 12m/min Rapid Feed Y 12m/min Z 12m/min Cutting Feed 6m/min Position Accuracy0.008mm Min Enactment Move unit 0.001mm Net weight 5300KG Max load of Table 600KG
