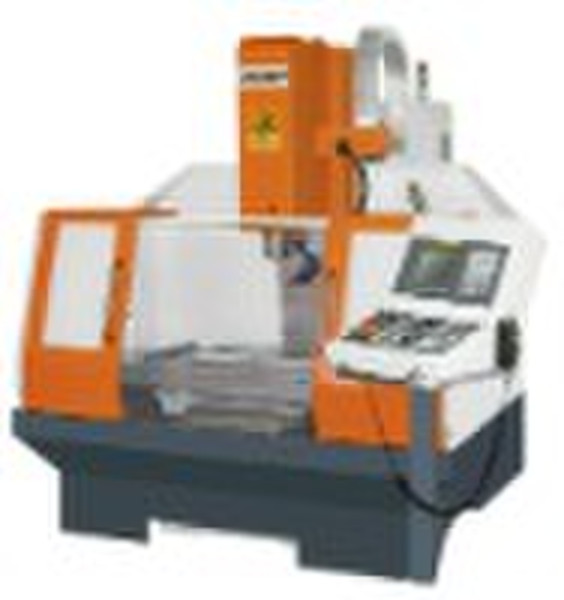

Vertical Machine Center VMC540

Hardened and quenched slideway with Turcite B coatedmakes the machine good anti-vibration performance,high rigidity and heavy loaded. Spindle and spindle motor have been dynamic balanced,so tool life could be extended,and fantastic processing quality could be reached. The design of whole cover is designing with good oil and water proof performance. Taiwan famouse brand components(C3 leading screw,spindle and tool magazine). Renishaw equipments are used to test each machine to meet the requirements of all clients. Two dimensional and three dimensional trial cutting test of rigidity of tool magazine,to assure its high cutting quality.Table size 620*380mm Travel X*Y*Z 500*380*420mm Distance between Spindle and Table 105-530mm Distance between Spindle and Column 545mm Spindle Rotation Speed 8000(10000 optional) Spindle Taper BT40(Φ120) Spindle Motor 5.5KW X 10m/min Rapid Feed Y 10m/min Z 10m/min Cutting Feed 6m/min Position Accuracy0.008mm Min Enactment Move unit 0.001mm Net weight 3000KG Max load of Table 250KG
