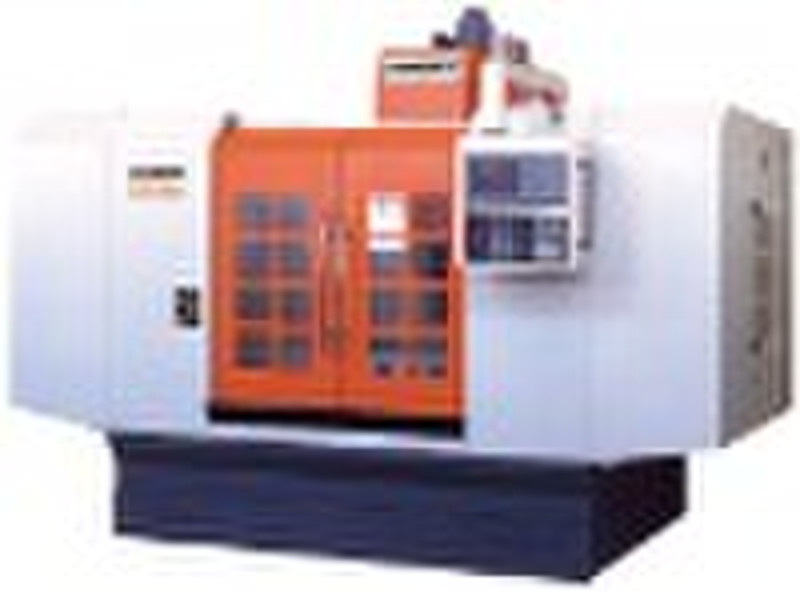

Vertical Machine Center VMC1060L

Imported linear way with small friction embodies quick response,fast federate and high positioning accuracy performance. Spindle and spindle motor have been dynamic balanced,so tool life could be extended,and fantastic processing quality could be reached. Professional stainless steel cover of slide way can protect slideway and screw against cutting fluid and chips efficiently. Widened and lengthened pedestal and special design of ram can meet the requirement of high speed and fast feed. Oil is recycling in a circle without leakage. Renishaw equipments are used to test each machine to meet the requirements of all clients. Two dimensional and three dimensional trial cutting test of rigidity of tool magazine,to assure its high cutting quality. Table size 1300*600mm Travel X*Y*Z 1000*590*600mm Distance between Spindle and Table 100-650mm Distance between Spindle and Column 655mm Spindle Rotation Speed 8000RPM(7000 optional) Spindle Taper BT40 Spindle Motor 11 KW X 24m/min Rapid Feed Y 24m/min Z 12m/min Cutting Feed 8m/min Position accuracy0.008mm Min Enactment Move unit 0.001mm Max load of Table 600KG Net weight 8000KG
