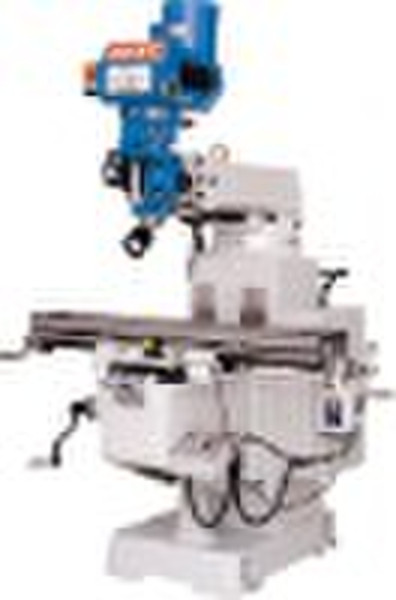

Milling Machine <3VA-V>

This milling machine is mainly for electric parts, mould and hole, slot and frame processing Twice precisely scraping could assure the quality of processing Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm Taiwan original milling head, NSK P4 spindle bearing Spindle tolerance 0.002mm Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm Variable speed is available Table size: 1270*254*90mm Travel X: 900mm Travel Y: 395mm Travel Z:350mm Travel of Spindle Quill: 127mm Max. Distance from the Spindle Nose to Table: 400mm Spindle Rotation Speed:Variable 60-4200RPM Spindle Taper: R8(NT30) Spindle rated Power: 3HP Title Angle Forward and Backward: ±45° Left and Right: ±90° Net wight: 1280KG
